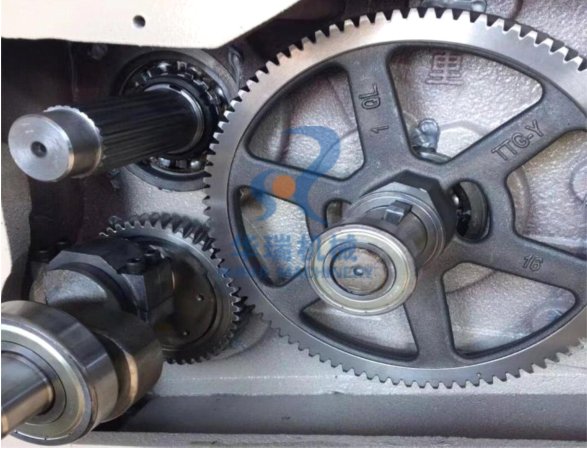

This machine is equipped with Japanese NACHI bearings and Taiwan TA TUNG gears to ensure stable operation of the machine.

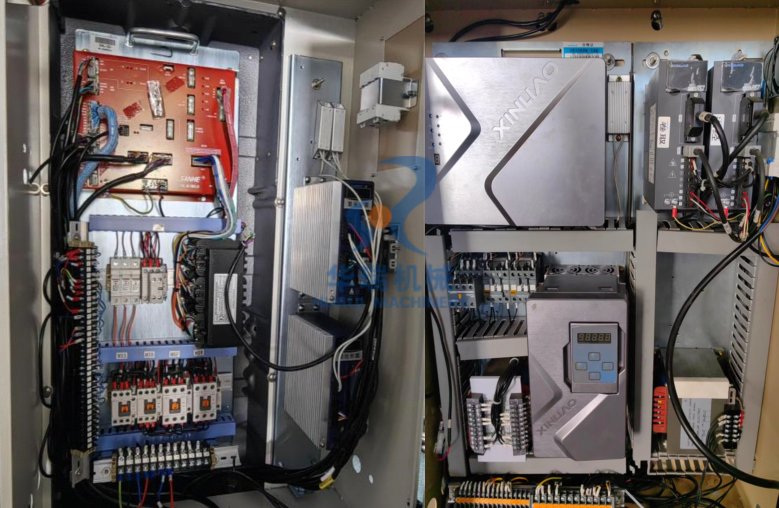

Adopt SANHE water-jet loom three-in-one weft storage system/SHL-2/3/4W loom control system.And XINLIAO's new V series electronic control system is equipped with electronic control, weft storage, direct drive and power delivery, and has been greatly improved in performance, quality and industry adaptability.(Arbitrary choice).

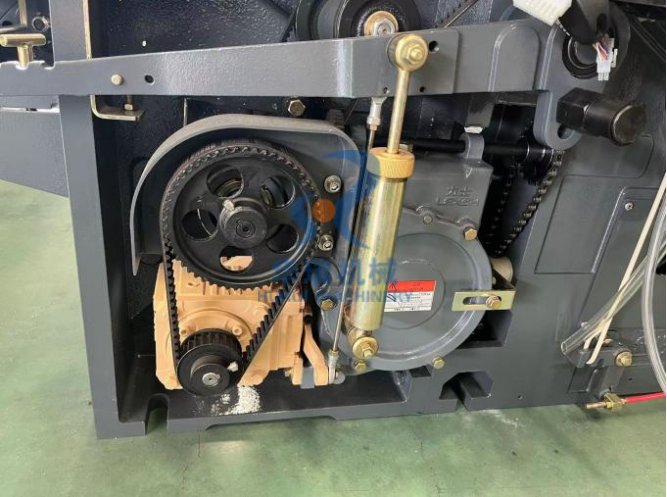

The machine is equipped with Japanese SHIMPO transmission, and can also be equipped with electronic let-off and electronic take-up.
Model | HJW822 |
Reed | （170CM-360CM） |
Effective Reed | 0~80CM |
Power | 1.8-4.5KW |
Structure | gear box structure ,oil lubrication system |
Nozzle | 1-2个（set） |
Pump | 1个（set） |
Measuring feeder | mechanical feeder，1HP weft storage blower |
Beating | bicrank multilaid beating structure , super heavy weight balanced beating |
Shedding | plain |
Heald Frame | （Max）8 pic |
Let off | electronic let off（standrd） |
MLO、stepless speed transmission、belt transmission mode(optional) | |
beam diameter：φ800mm（standard），φ914mm、φ1000mm(optional) | |
L/R bi-bearing、bi-cudgel（standard） | |
Take up | electronic take up (standard).Weft density:5~118picks/cm |
meachanical take up.Weft density:5~60picks/cm(standard)、35~90picks/cm(optional) | |
S or L take-up pattern,MAX.diameter:φ520mm | |
Catch Cord Device | gears cross-twist system、automatic yarn cutting sensor |
Yarn-end Disposal | false twist spindle |
Weft Cutting | mechanical cutter |
| fibre optical feeler |
touch screen for warmup、start、stop、inch、reversed inch | |
digital watch indicates output、speed、efficiency and stop frequency | |
4-color lamp for indicating stop cause | |
speed changing device | |
Blower | electronic(240w)，water absorption pressure bar for drier fabric(optional) |
Weft Supply Stand | landen、fixed and two picks per set |
